Manufacturing & forging

Critical components, engineered without compromise.

From integral pressure vessel connections to bespoke forgings, manufactured to customer specifications for the most demanding industrial applications.

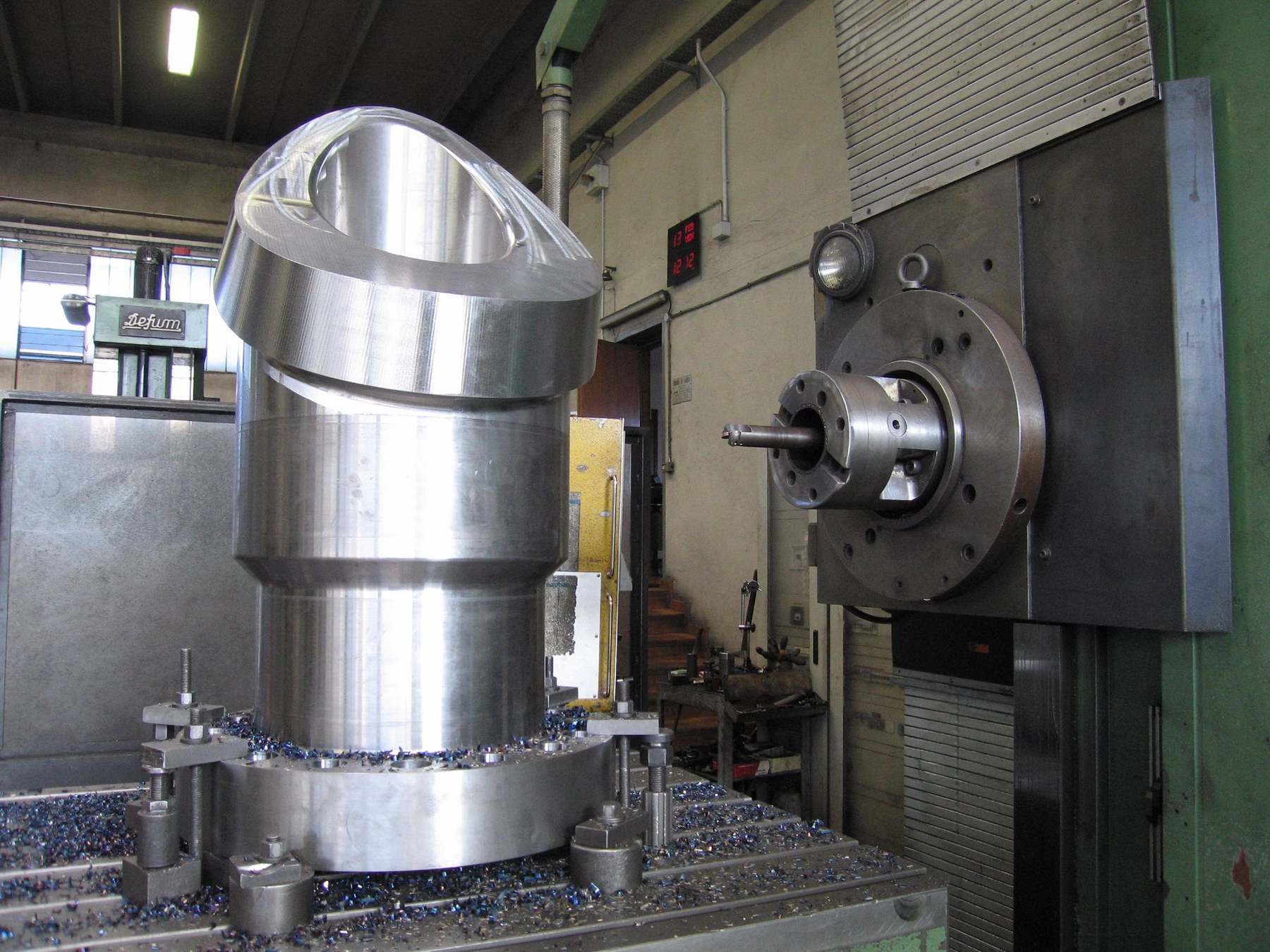

Precision machining of a forged component — Precision machining

Featured products

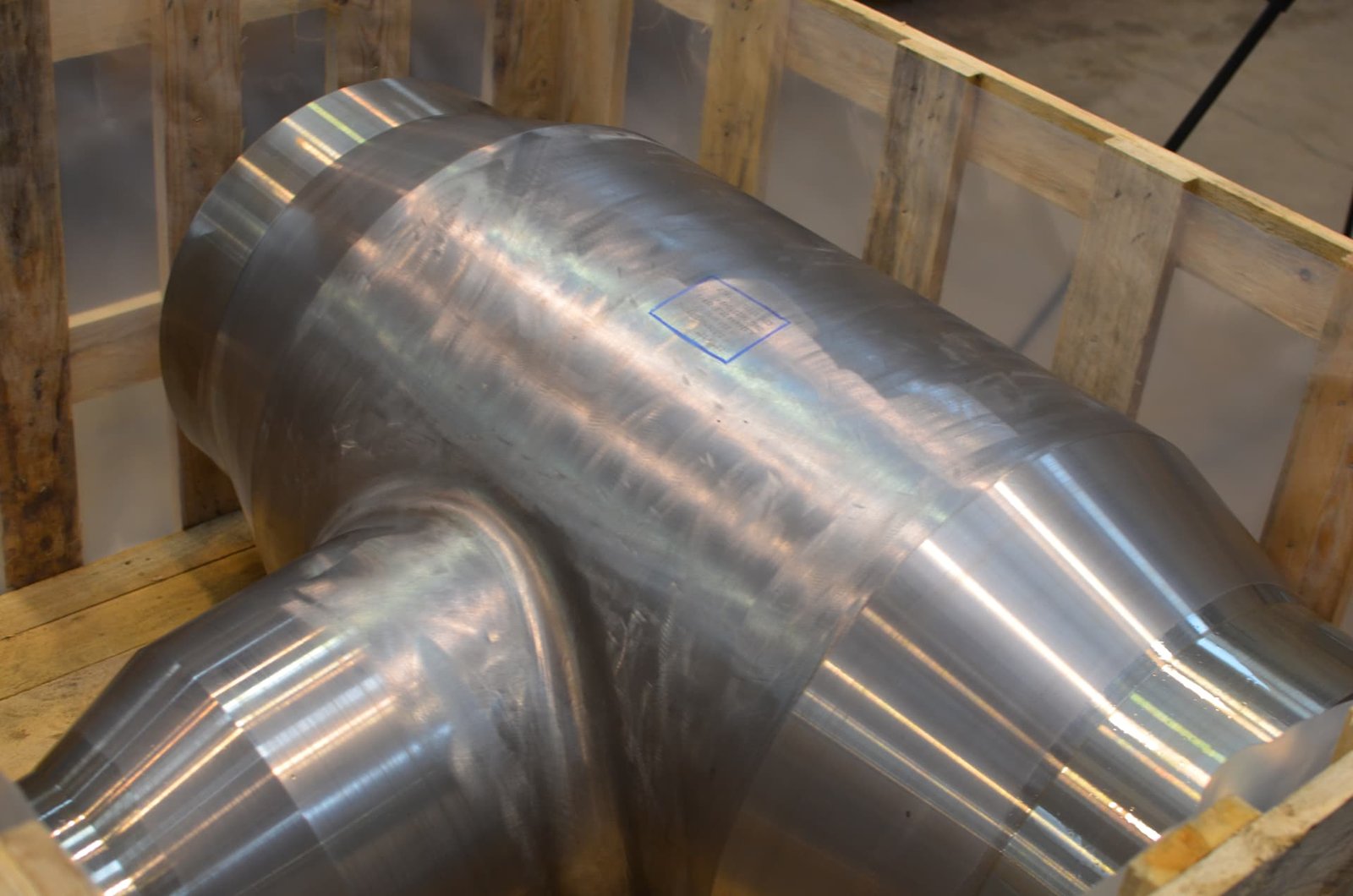

Heavy-wall forged tee resting in a wooden shipping crate — Forged SMLS tees
HPHT components

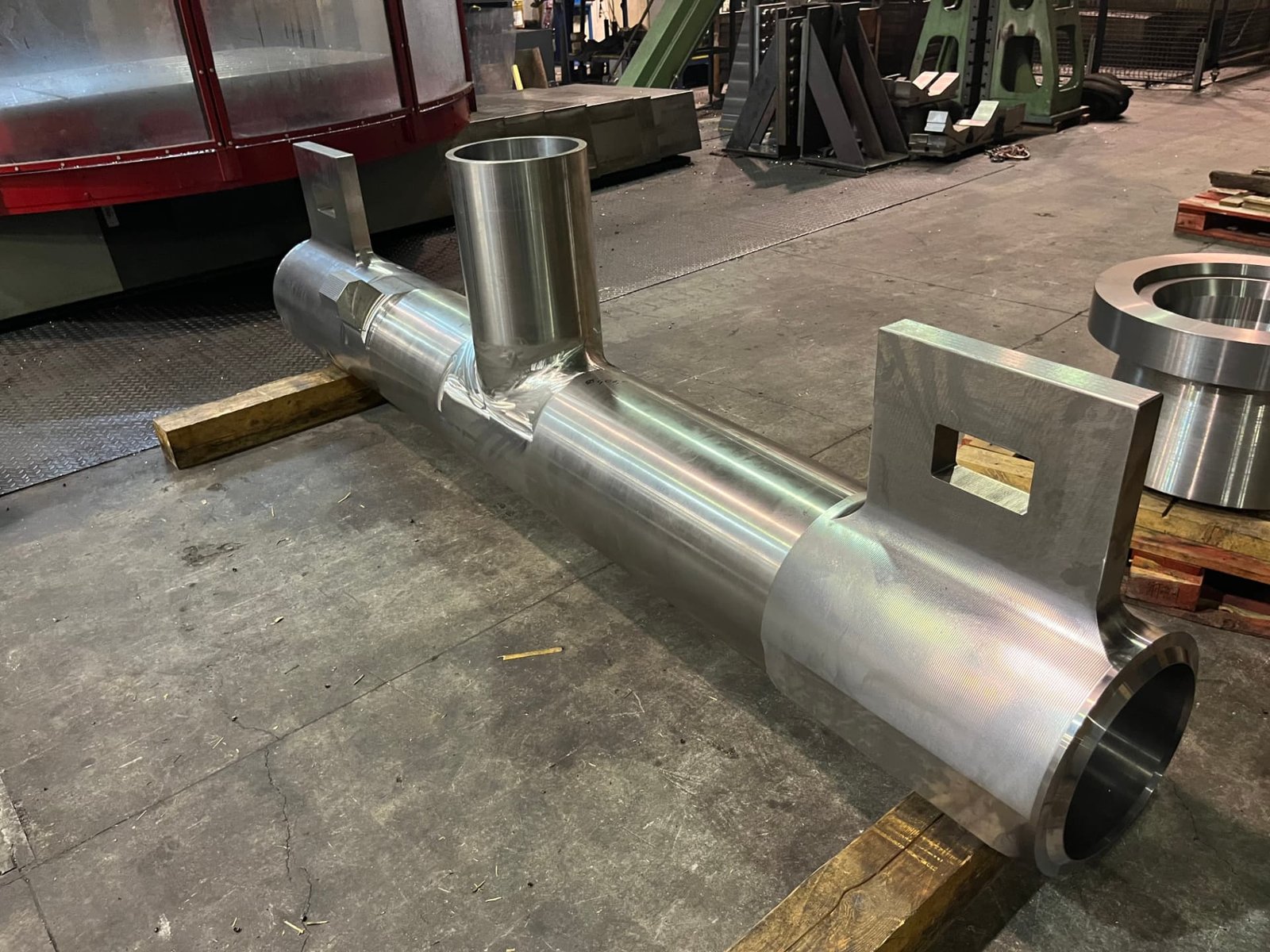

Long forged manifold assembly with a central branch and lifting brackets on the workshop floor — Manifolds & forged pipe
HPHT components

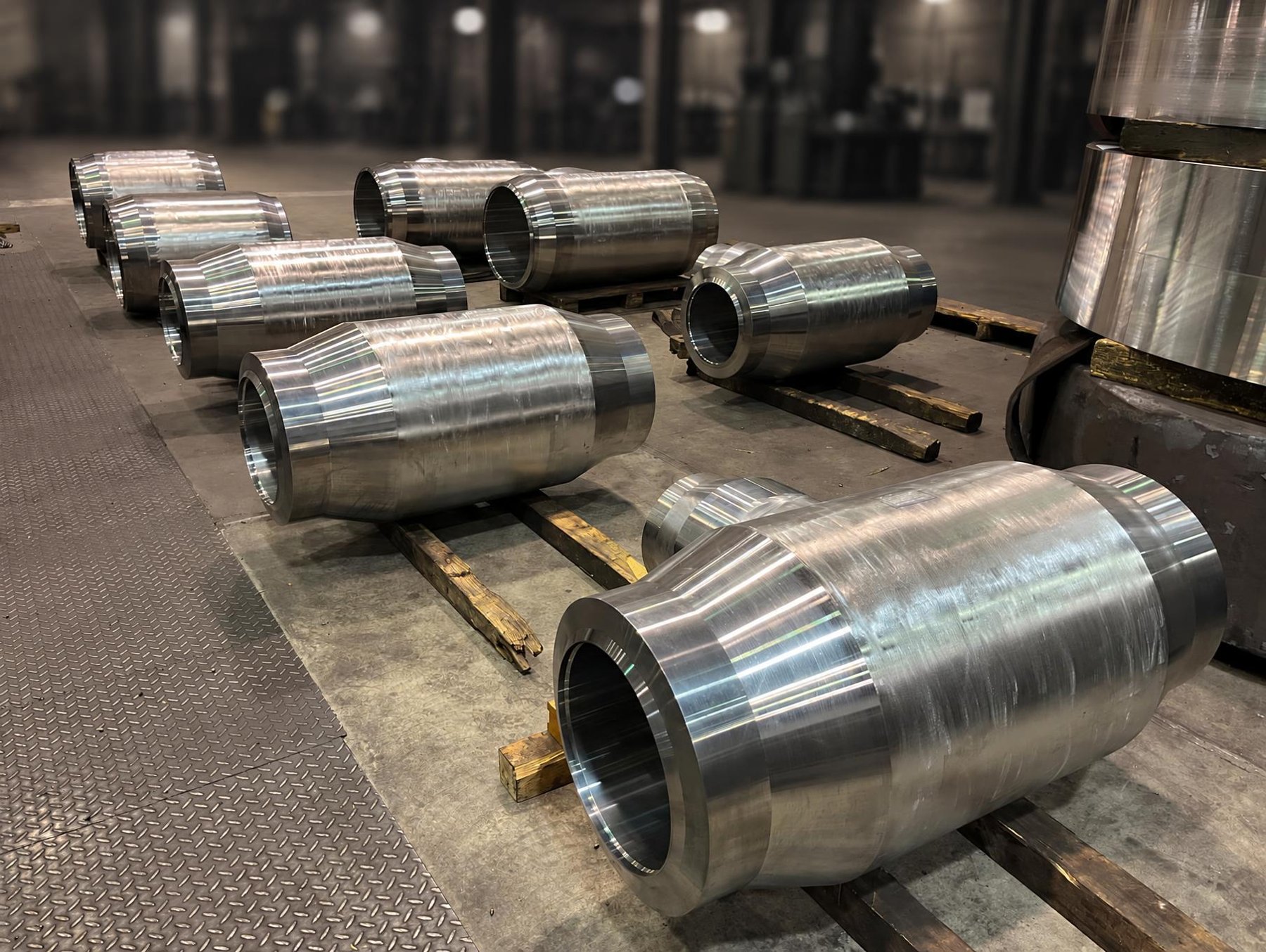

Machined forged seamless tees on timber supports in the workshop — Forged SMLS tee, HPHT service
HPHT components

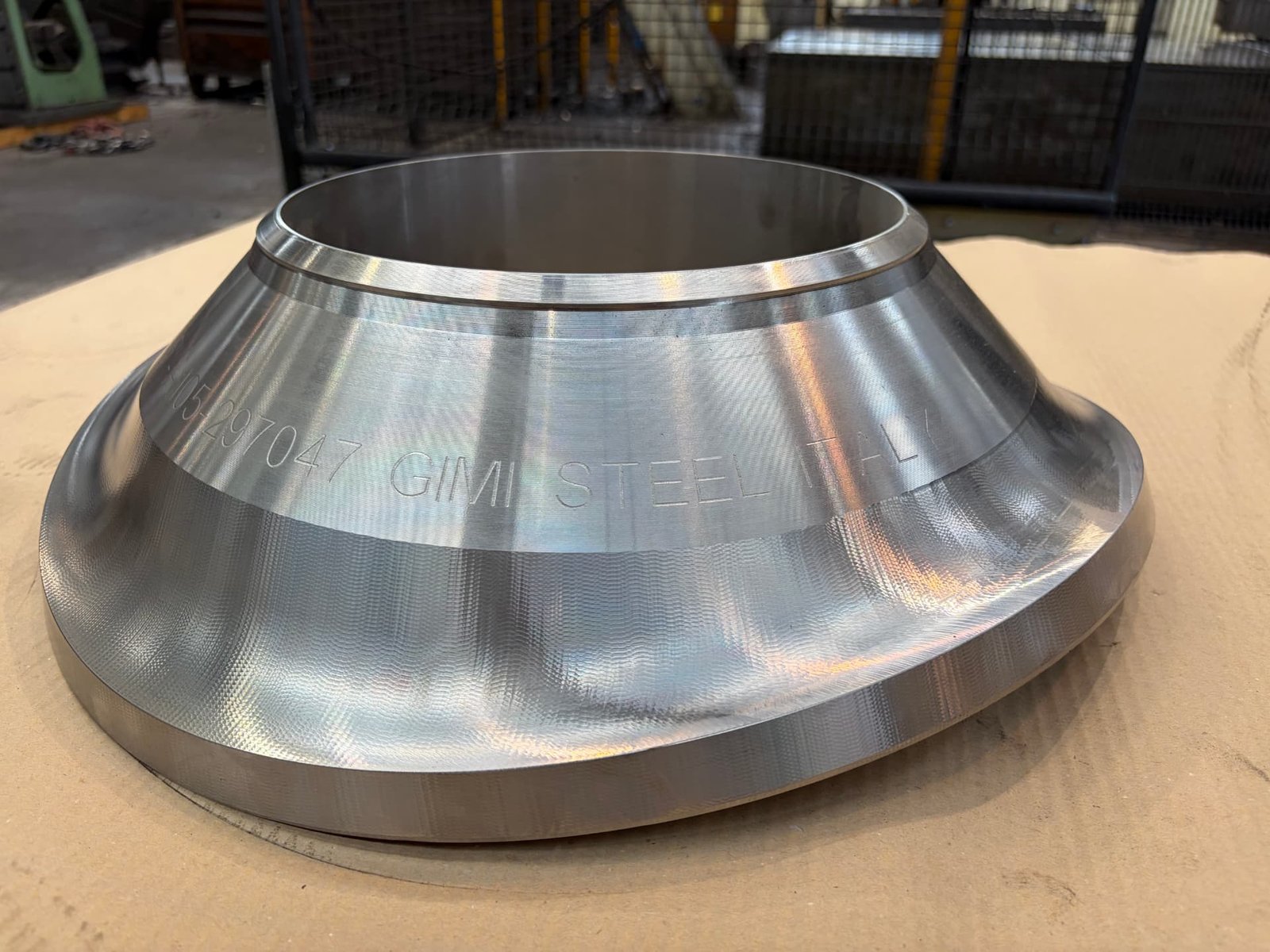

Machined forged insert outlet on a workshop bench — Insert outlet
Branch outlets

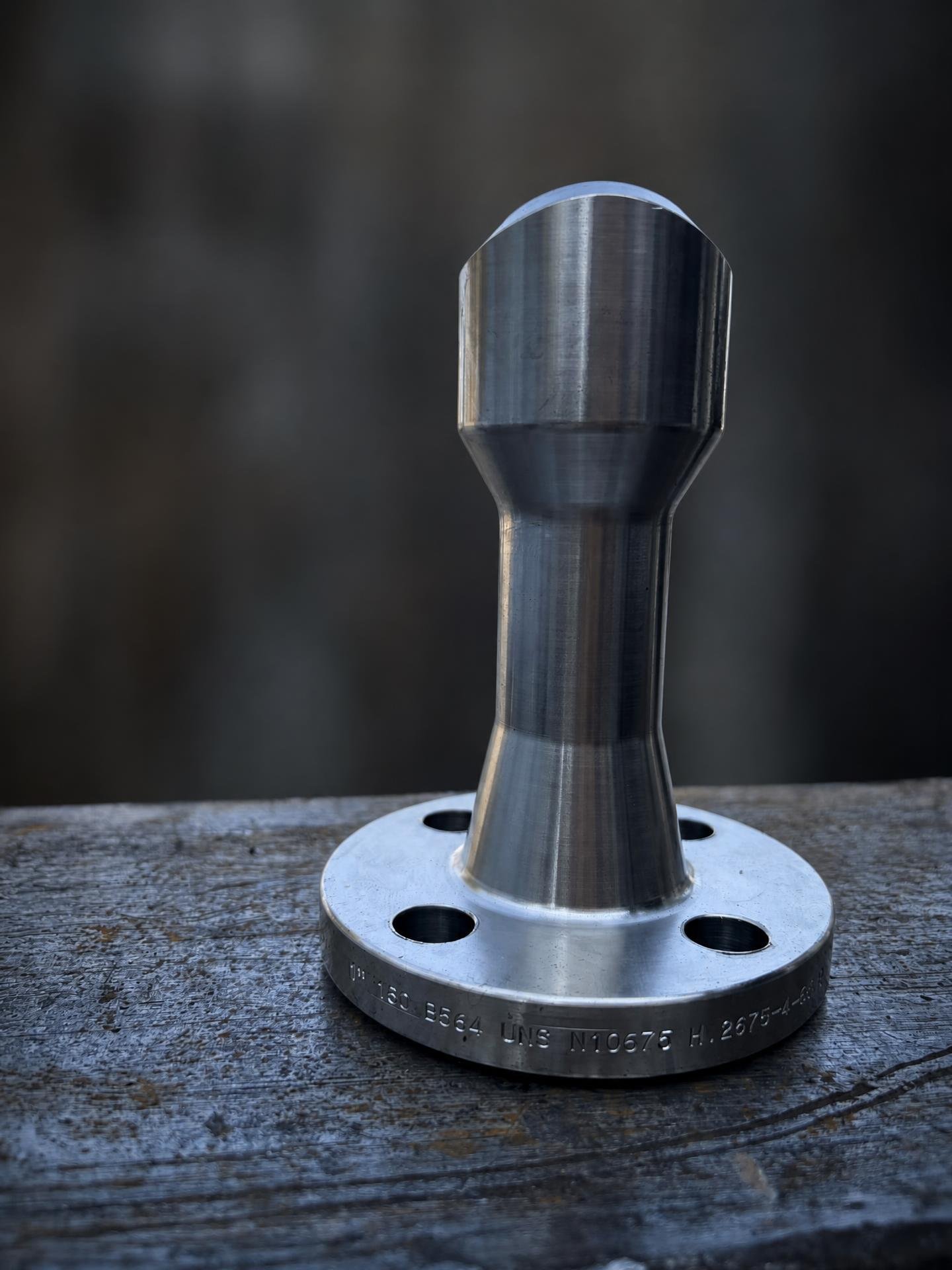

Machined nipoflange standing on a workbench — Nipoflange
Branch outlets

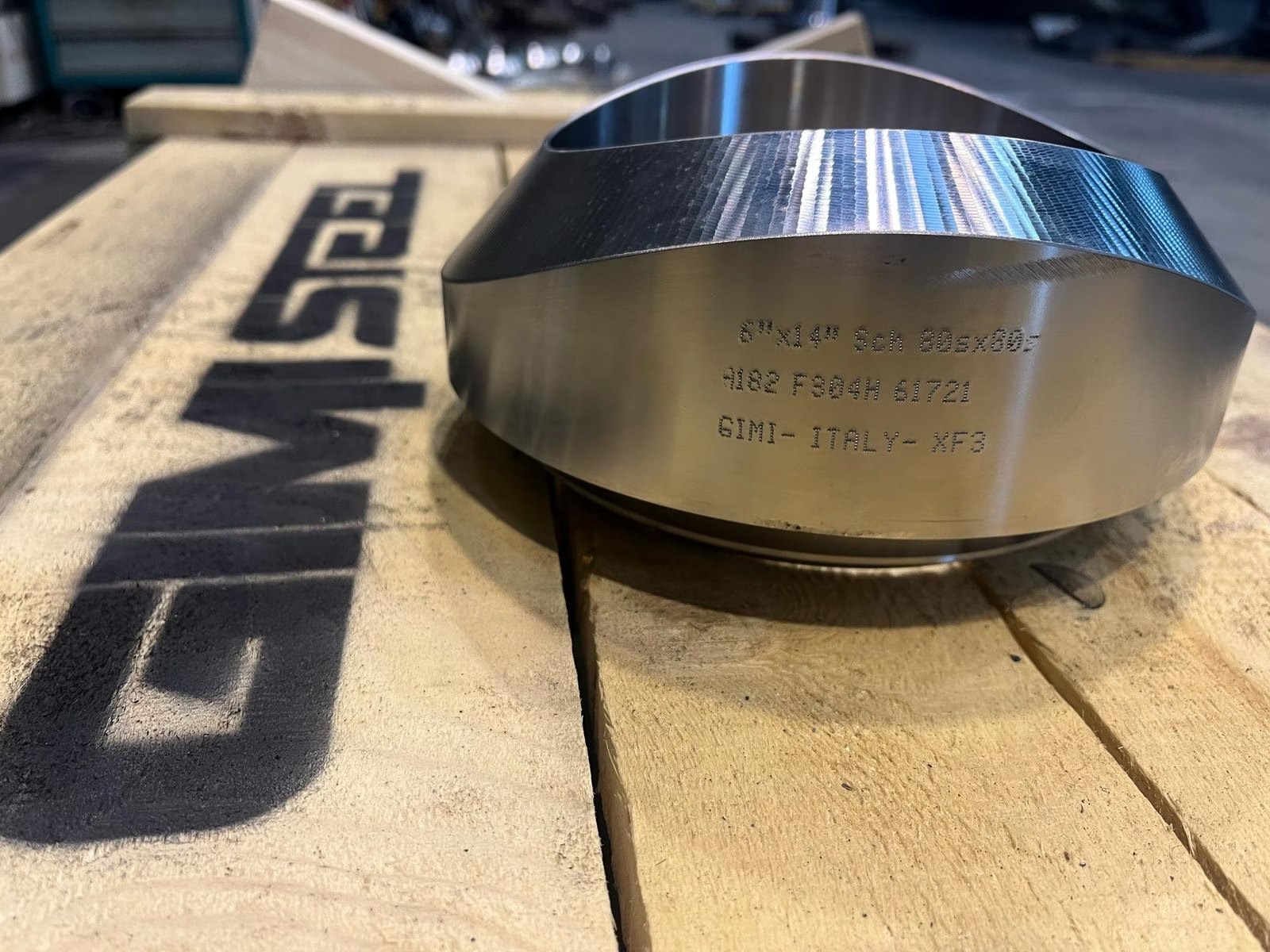

Machined forged olet on a GIMI STEEL crate — Olets
Branch outlets

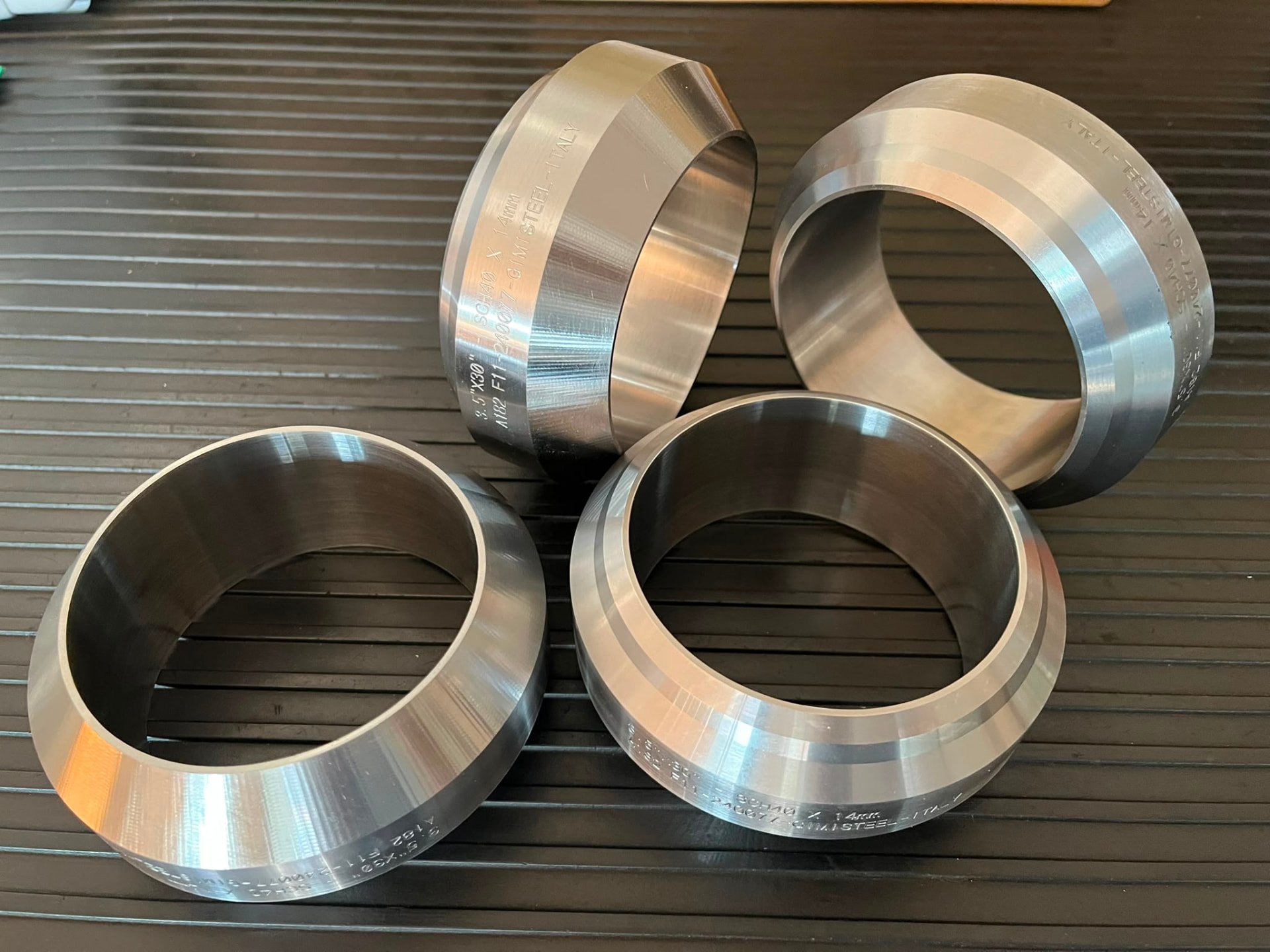

Four machined forged branch outlets marked GIMI STEEL Italy — Branch outlets
Branch outlets

01 / Product range

ASME pressure vessel connections

Forged nozzles and integral connections designed to eliminate reinforcement pads and built-up solutions, reducing fabrication cost and improving structural integrity.

Long Weld Neck (LWN): Integral reinforced nozzles for seamless weld-to-vessel attachment in high-pressure, high-temperature applications.
Q-Lip nozzles: Tangential or radial butt-weld geometry facilitating full radiographic examination of the nozzle-to-shell weld.
Stub nozzles: Compact forged connections for space-constrained pressure vessel applications.
Branch outlets: Self-reinforcing weldolet, sockolet and threadolet-type outlets per MSS SP-97 and ASME B16.11, without external reinforcement pads.
Nipoflanges: Nipple and flange forged in one piece to reduce leak paths and simplify piping layouts.
Large OD flanges: Custom-forged diameters beyond standard catalogue ranges, produced to customer drawings and specifications.

02 / Product range

HPHT components

High-pressure, high-temperature forged components for subsea pipelines, deepwater infrastructure and power generation piping, engineered for extreme pressure cycles, fatigue loads and corrosive environments.

Wyes & laterals: Forged branching elements for flow splitting and joining, in symmetric and asymmetric configurations.
Tees: Heavy-wall forged tees for critical piping intersections requiring superior mechanical properties compared with fabricated alternatives.
Hemi heads: Hemispherical forged end closures for pressure vessels, accumulators and subsea pressure housings.
Manifolds & forged pipe: Seamless pipe and multi-line assemblies forged from solid billet and forged hollows. Short or long lengths, up to double random, for applications where wrought pipe is unavailable or insufficient in wall thickness.

03 / Product range

Wellhead products

Forged structural and pressure-containing components for onshore and offshore wellheads, produced to API 6A and customer-specific requirements. Components are traceable to API 6A/20B requirements, with full material and dimensional certification packages available.

Casing heads: Primary structural elements providing surface casing suspension and the primary pressure seal at the annulus.
Tubing heads: Upper wellhead components supporting the tubing string and providing the interface with the Christmas tree.
Goat heads: Multi-outlet forged bodies enabling simultaneous access to annular spaces during well completion and workover operations.
Block branches: Heavy-wall forged manifold bodies integrating multiple flow paths in one compact component, minimising flanged joints and leak risk.

04 / Product range

Specialised products & components

Bespoke designs and high-performance materials for critical applications in severe service environments, combining engineering expertise with advanced manufacturing capabilities.

Custom forgings: Complex geometries, structural items and tailored material compositions, including pad eyes, J-tubes, bellmouths and vessel skirts.
Special pipe fittings: Flow tees, barred tees, cushion tees/crosses, pig launchers and receivers, buckle arrestors and custom closed-die fittings for non-standard geometry, flow and pigging requirements.
Special flanges: Swivel, anchor, misalignment, custom-designed and oversize flanges for movement compensation and dimensional constraints beyond standard catalogues.
Corrosion-resistant alloys: Components in exotic corrosion-resistant alloys for aggressive chemical and high-temperature conditions.
Tubesheets: Large-diameter forged discs for shell-and-tube heat exchangers, specialising in internal bore welding (IBW), crevice-free solutions and deep drilling.
Cladded connections: Carbon or low-alloy steel forgings with internal or weld-overlay CRA cladding in Inconel 625, 316L or duplex for sour service and highly corrosive media.
